Insulation fixing FID

Thermal bridge-free installation in insulation materials.

The fischer insulation fixing FID is a plug for fixing light fixtures in plastered and non-plastered insulation panels made from polystyrene and polyurethane. The fischer FID is set by hand or using a cordless screwdriver. The special spiral thread taps itself in the insulating board. The fixtures - such as letterboxes, lamps, and motion detectors - can be secured with a 4.5 mm or 6 mm screw.

Opis proizvoda

Advantages

Since the anchor is set exclusively in the insulation itself, fixtures can be installed without thermal bridges.
The geometry of the FID allows for a simple installation in thin layers of plaster, without the need for pre-drilling, thus saving a stage of installation.
The FID 50 is used in thin insulating boards from 50mm. The FID 90 is used in thicker insulating boards, and can bear higher loads.
The bit mounting allows for setting with standard tools, thus allowing for a fast and economic installation.

Dostupne verzije proizvoda

12 pronađeno verzija proizvoda

Verzija

Anchor length

Wood and chipboard screws

d_s

Drive

Max. bolt penetration

l_E,max

Pregledano 12 od 12 verzija

Primjena i dozvola

Applications

To fix lightweight attachments on ETICS facades.
The application areas are ETICS facades made of:

Polystyrene
Mineral wool
Soft wood fibre
Alternative ecological insulation boards

Building materials

Non-plastered, pressure-resistant insulating boards
Plastered, pressure-resistant insulating boards
ETICS insulating boards

* Detaljne informacije o građevinskom materijalu možete pronaći u registracijskom dokumentu.

Uputa za sastavljanje

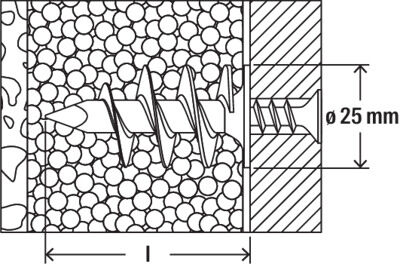

Functionality

The FID can be set in the insulating board with a cordless screwdriver or by hand.
For thick layers of plaster a pre-drilling (6 mm) is recommended.
The special spiral thread taps itself in the insulating board.
Water ingress in the insulation can be prevented by sealing the plug collar with a suitable sealant after successful pre-positioned installation.
We recommend to predrill an 6 mm hole in ETICs rendering.

Dokumenti za preuzimanje

Dodatni dokumenti

Load Table (PDF, 26 KB)

Sastavni dijelovi i povezane kategorije

Sastavni dijelovi

Hammer drill bit Quattric II

Hammer drill bit Quattric II

The expert for the best performance in reinforced concrete

Više informacija

Masonry drill bit Pointer M

The perfect drill bit for all perforated building materials

Više informacija

Anchor length l	50 [mm]
Wood and chipboard screws d_s	4.5 - 5.0 [mm]
Drive	TX40
Max. bolt penetration l_E,max	35 [mm]
Contents	—
Packaging	—
Amount	50 [pcs.]
GTIN (EAN-Code)	4006209482131

Anchor length l	50 [mm]
Wood and chipboard screws d_s	4.5 - 5.0 [mm]
Drive	TX40
Max. bolt penetration l_E,max	35 [mm]
Contents	4 x FID 50 K
Packaging	—
Amount	4 [pcs.]
GTIN (EAN-Code)	4006209168103

Anchor length l	50 [mm]
Wood and chipboard screws d_s	4.5 - 5.0 [mm]
Drive	TX40
Max. bolt penetration l_E,max	35 [mm]
Contents	4 x FID 50 K
Packaging	Blister card
Amount	4 [pcs.]
GTIN (EAN-Code)	4048962059250

Anchor length l	50 [mm]
Wood and chipboard screws d_s	4.5 - 5.0 [mm]
Drive	TX40
Max. bolt penetration l_E,max	35 [mm]
Contents	45 x FID Green 50
Packaging	—
Amount	45 [pcs.]
GTIN (EAN-Code)	4048962199758

Anchor length l	50 [mm]
Wood and chipboard screws d_s	4.5 - 5.0 [mm]
Drive	TX40
Max. bolt penetration l_E,max	35 [mm]
Contents	4 x FID Green 50 K
Packaging	—
Amount	4 [pcs.]
GTIN (EAN-Code)	4048962199642

Anchor length l	90 [mm]
Wood and chipboard screws d_s	6.0 [mm]
Drive	6 mm / 6-kt
Max. bolt penetration l_E,max	80 [mm]
Contents	—
Packaging	—
Amount	25 [pcs.]
GTIN (EAN-Code)	4048962104684
