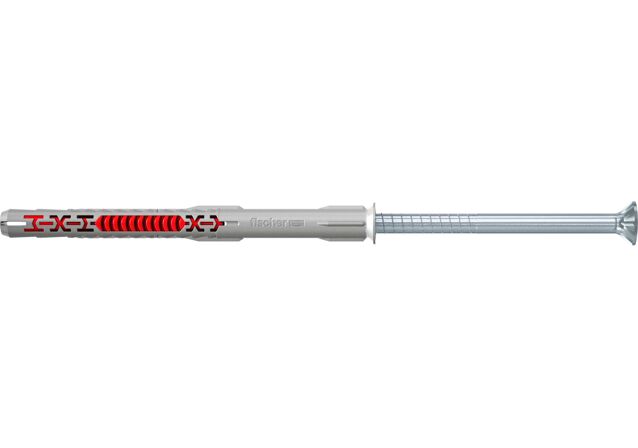

fischer Frame fixing DuoXpand 10 x 140 T zinc-plated steel

Name: fischer Frame fixing DuoXpand 10 x 140 T zinc-plated steel
Brand: fischer

Produkt varijante

Download of image data

Top Features

Clever combination of design and material for a secure installation in the building material.
Expansion element with two anchoring depths for flexible use.
Approved multiple fastening of non-load-bearing systems in concrete and masonry.
Side ribs prevent rotation in the drill hole for convenient installation.
Pre-assembled safety screw with countersunk head.

Anchor with a smart bite

Advantages

The combination of design and material adapts to all building materials and enables universal use.
The special lamella geometry expands gently in the respective building material. This avoids fractures in porous building materials and enables anchoring close to the edge.
The grey main body made of high-quality nylon provides the strength, while the red material component ensures flexibility and optimal spreading.
The European Technical Assessment (ETA-21/0324) for multiple use for non-structural applications ensures secure hold in all building material classes.
DuoXpand 10 with lengths 80, 100, 180 and 200 mm is suitable for anchoring under seismic influence in hollow brick masonry (ETA-22/0186).
The pre-mounted safety screw is perfectly matched to the plug and ensures time savings during installation.

The fischer frame fixing DuoXpand with two anchoring depths is approved with the fischer countersunk screw for multiple fixings of non-load-bearing systems in concrete, masonry and aerated concrete. Thanks to its special geometry and the material combination, the anchor expands optimally in the respective building material. The range includes diameters 8 and 10 and anchor lengths up to 230 mm. The DuoXpand with the countersunk screw is particularly suitable for fixing timber to concrete or masonry.

Applications

Facade, ceiling and roof substructures made of wood and metal
Windows
Gates and doors
Wardrobes
Kitchen hanging cabinets
Squared timbers
Beams
TV consoles
Wall covering
Metal brackets
Metal supports
Cable ducts
Cable trays

Building materials

Approved for:

Concrete ≥ C12/15
Solid brick
Solid sand-lime brick
Solid block made from lightweight and normal weigth concrete
Vertically perforated bricks
Perforated sand-lime brick
Hollow blocks made from lightweight concrete
Aerated concrete

Suitable for:

Natural stone with dense structure
Solid panel made from gypsum

Primjenjuju se pojedinosti (građevinski materijali, opterećenja itd.) bilo kojeg dostupnog odobrenja. Dodatne dokumente možete pronaći u Download Center.

Atesti

ETA-21/0324
DoP No. 0347
REPORT NO.: 21-010-3 (1)

Functionality

The DuoXpand is suitable for push-through installation.

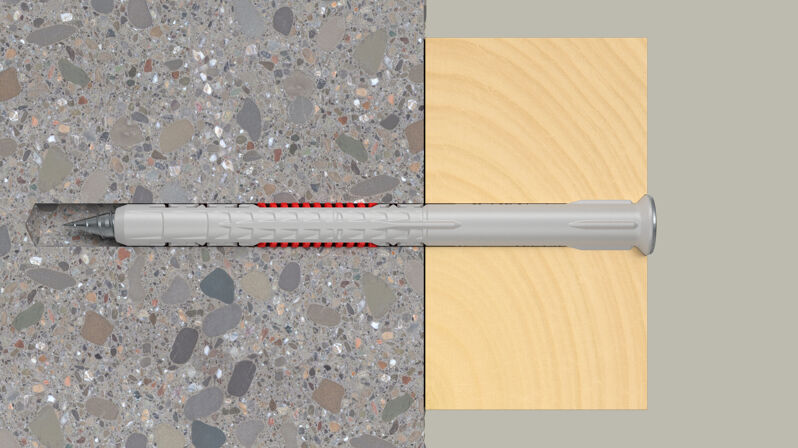

In solid building materials, the product design guarantees equal load distribution into the substrate.

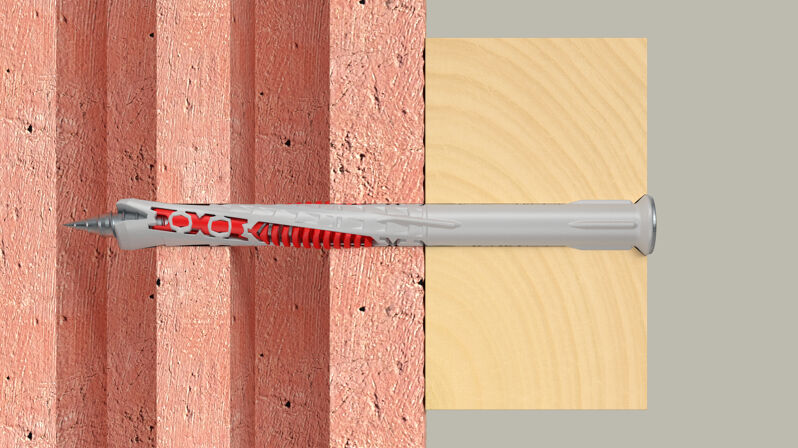

In perforated brickwork, the lamellas expand at the stone web and form an undercut in the cavity. The anchor geometry ensures that the force is transferred evenly to the material, so that porous stone webs are not destroyed.
Particularly suitable for fixing wood to concrete or masonry.

Mounting Strip 1 Picture

1 / 5

ETA Certification Document

pdf, ETA-21/0324

European Technical Assessment for fischer DuoXpand - Plastic anchors for redundant non-structural systems in concrete and masonry

izdato 19. 10. 2023.

DOP - Declaration of Performance

pdf, DoP No. 0347

Declaration of Performance for fischer frame fixing DuoXpand (Plastic anchors for use in concrete and masonry)

izdato 02. 11. 2023.

Test report (fire protection)

pdf, REPORT NO.: 21-010-3 (1)

fischer frame fixing anchor DuoXpand 10 under fire exposure

Vrijedi od 19. 04. 2022.
do 19. 04. 2027.

Load Table

pdf,

Frame fixing DuoXpand - Permissible loads of a single anchor as part of a multiple fixing of non-structural systems.

Marketing Documents

pdf,

DuoXpand. Anchor with a smart bite.

Marketing Documents

pdf,

DuoLine.

Marketing Documents

pdf,

Frame fixings. The full range for all applications.

ETA-approval
Drill diameter ( d₀ )	10 mm
Min. drill hole depth for through fixings ( h₂ )	150 mm
Usable length at anchorage depth 50 mm ( t_fix )	90 mm
Usable length at anchorage depth 70 mm ( t_fix )	70 mm
Anchor length ( l )	140 mm
Drive	TX40
Contents	4 x DuoXpand 10 x 140 4 x Countersunk head screw 7.0 x 147 mm
Packaging	Blister card
Amount	4 pcs
GTIN (EAN-Code)	4048962440492
