fischer plug S 14 H 100 R

Name: fischer plug S 14 H 100 R
Brand: fischer

Produkt varijante

Download of image data

Top Features

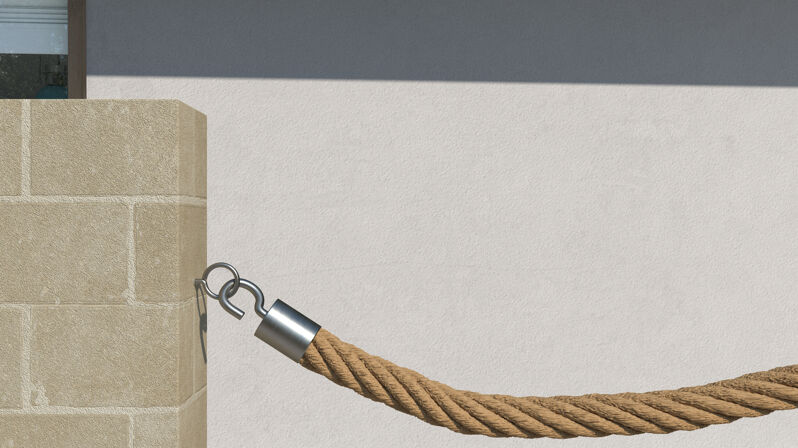

Optimum load-bearing capacities together with fischer universal eye screw.
Suitable for fixings in perforated brick.
Made of high-quality nylon.
Edge prevents slippage and spallings.
Fixing is close to the edge due to slimline geometry.

Frame fixing with two-way expansion for fischer GS 12 universal eye screw for fixings in perforated brick.

Advantages

The ideal interaction of the eye screw and anchor allows for a high load-bearing capacity, thus providing increased safety.
The anchorage depth of 90 mm offers special advantages for anchorings in perforated brick.

The fischer plug S 14 H R is an expansion plug made of high-quality nylon for holding the fischer universal eye screw GS. The expanding wings prevent rotation and make assembly easier. When driving in the universal eye screw, the two expansion zones expand and anchor themselves securely in the building material. For installations close to the edge, turn the plug so that the expansion force acts parallel to the edge.

Drill diameter ( d₀ )	14 mm
Min. drill hole depth for through fixings ( h₂ )	120 mm
Bolt penetration ( s )	110 mm
Effect. anchorage depth ( h_ef )	90 mm
Anchor length ( l )	100 mm
Max. thickness of non-bearing layer ( e )	10 mm
Packaging	Folding box
Amount	50 pcs
GTIN (EAN-Code)	4006209591796
