fischer triangular frame STFN 25°-30°-35°

Name: fischer triangular frame STFN 25°-30°-35°
Brand: fischer

Produkt varijante

Download of image data

Top Features

For panels with portrait or landscape layout
Adjustable inclination
Made of AW 6063/6060 T66 aluminium

Br.-art. 569371
SolarFish H44 3.65 m AL
Br.-art. 569372
SolarFish H44 4.85 m AL

Triangular frame STFN

Advantages

The STFN triangular frame is supplied pre-assembled and the accessories for connecting to Solar rails are included in the package.
The inclination of the panels is adjustable from 10° up to 35° depending on the STFN version selected.
All STFN triangular rails allow modules to be arranged both horizontally and vertically.
STFN is also available in the version 200 for panels with a length up to 2150 mm.

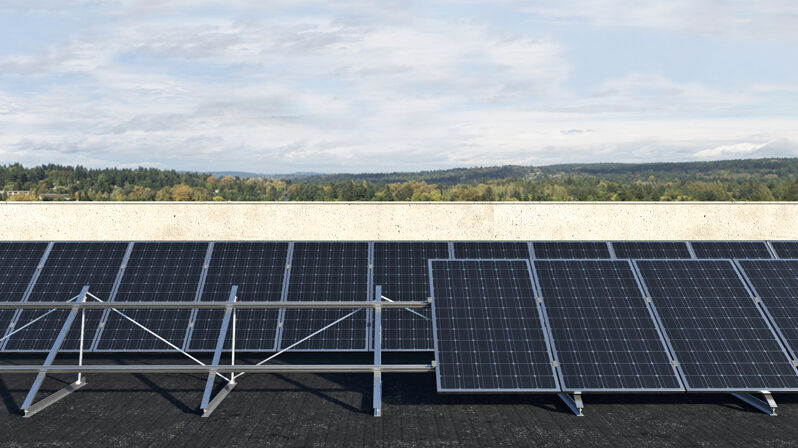

STFN is the triangular frame for the installation of photovoltaic systems on flat roofs, suitable for panels with both portrait and landscape layout. Available in four versions that can be selected based on the inclination and size of the PV panel.

Properties

Triangular structure in AW 6063/6060 T66 aluminium in accordance with EN 755-2:2013.
A2-70 stainless steel bolts in accordance with EN ISO 3506-1/2:2009.

Functionality

Determine the centre distance of the triangular frames according to the snow and wind loads in the installation area in accordance with national standards.
Identify the position of the triangular frames according to the load-bearing structure and layout of the system.
Fix the base of the triangular frame with the appropriate anchor depending on the building material of the substrate.

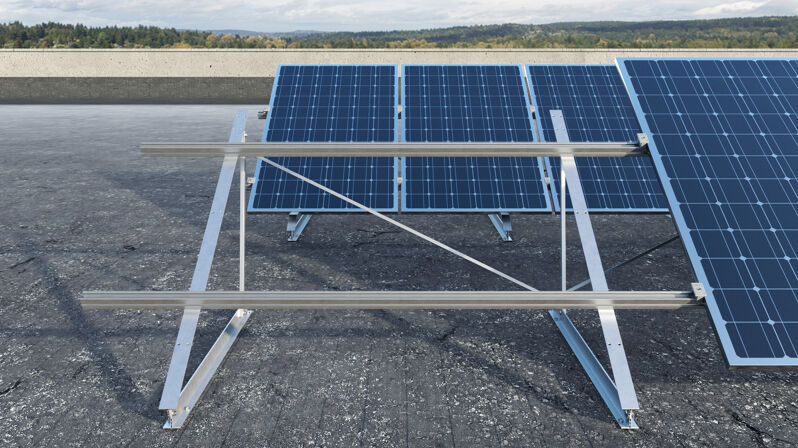

Connect the Solar rail to the diagonal of the triangular frame using the screws supplied in the package.

Mounting Strip 1 Picture

1 / 5

Hole-ø ( D )	9 mm
Installation torque ( T_inst )	10 Nm
Width across nut	13 mm
Weight	2,53 kg
Contents	5 x STFN triangle 20 x RHS M8 x 20 A2 hammer head screw 20 x MU F M8 A2 flanged nut
Amount	5 pcs
GTIN (EAN-Code)	8001132021583

fischer triangular frame STFN 25°-30°-35°
